The Houghton Belaire HB3400A has outstanding heating and cooling performance with low noise and vibration, the HB3400A is designed for larger caravans & motorhomes.
Featuring an attractive streamlined design that not only offers better integration with your RV but significantly less drag when you're on the move. The HB3400A is supplied with LED and WIFI in the Plenum with an innovative plenum structure providing industry leading air flow via primary and secondary outlets.
FEATURES

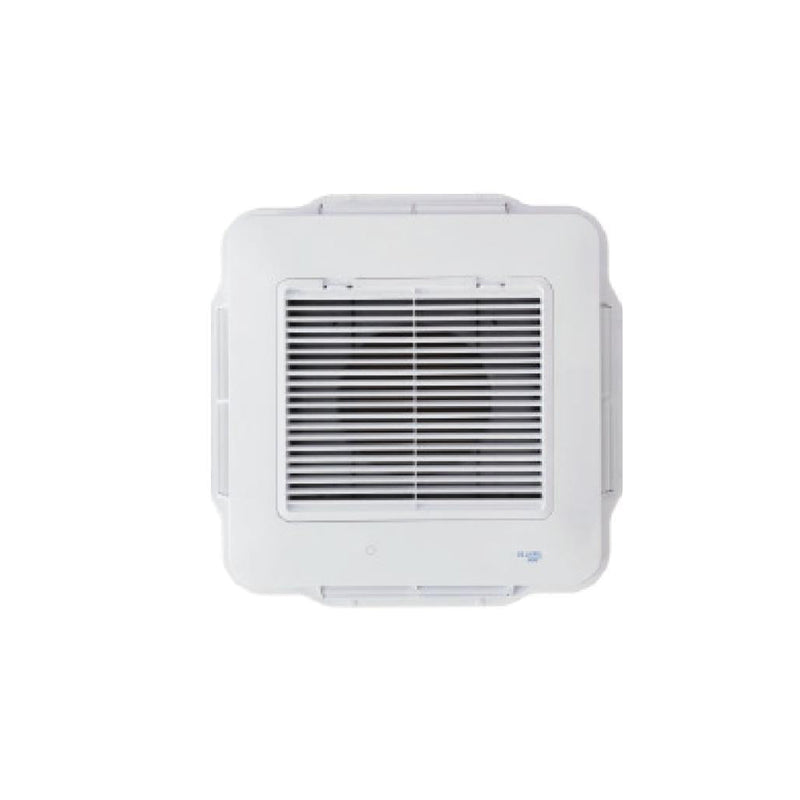

• Low profile plenum with an elegant design that complements modern interiors. Features easy to read LED display showing temperature and mode. LED reading light provides conveniences when you are in the room.

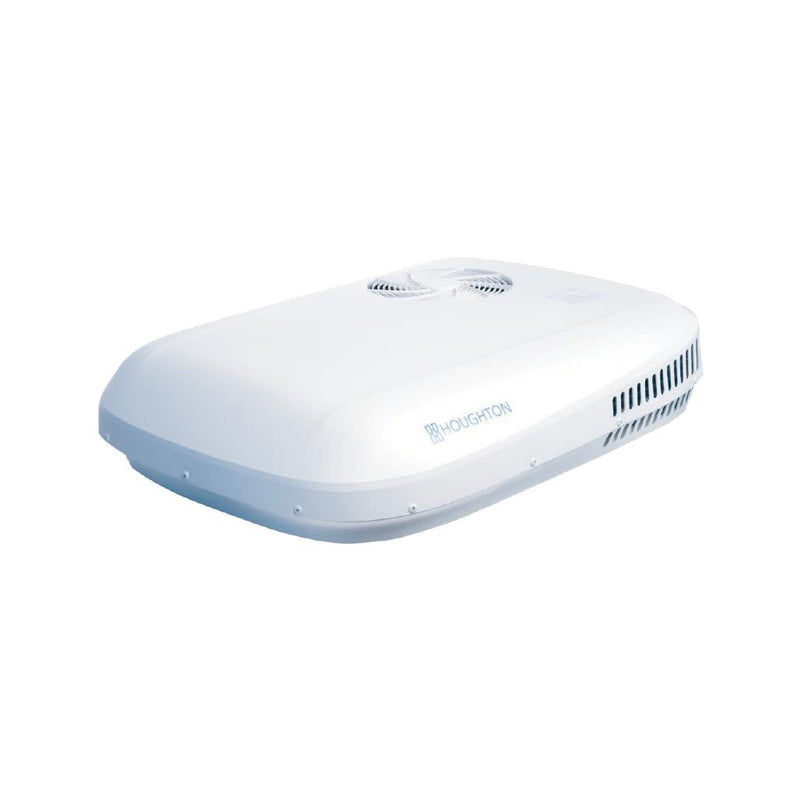

• Attractive streamlined canopy design to perfectly integrate with modern caravan and motorhome design. Just 22.3cm in height, low profile unit lets you park under lower structures.
• 4-way outlet from the interior unit allow air flow to be directed throughout the living space.
• The air filter is easy and convenient to remove and clean.

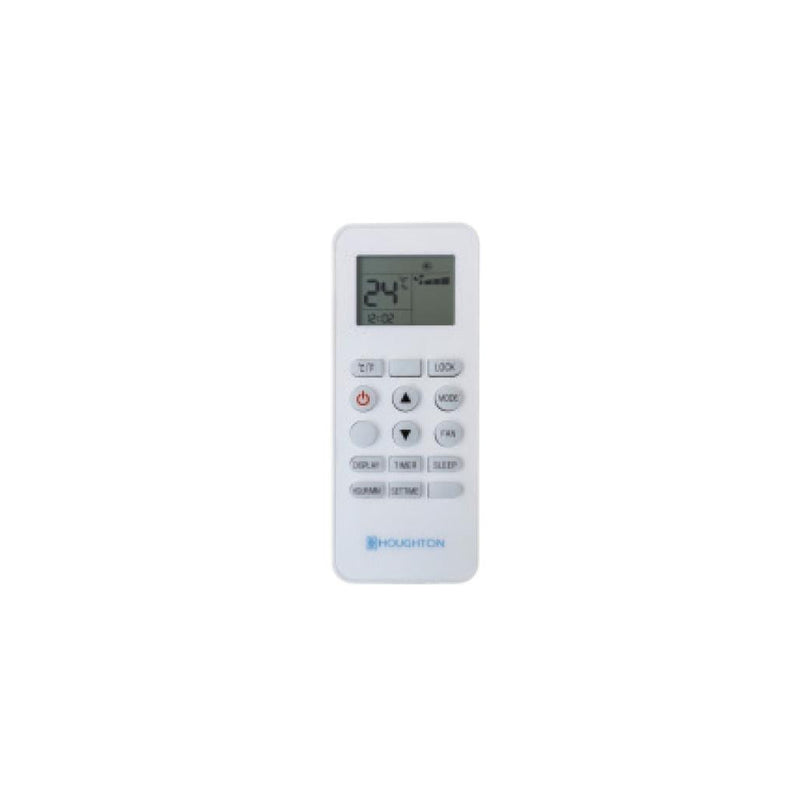

• Remote control with cooling, heating, dehumidifying, dry, sleep, timing and LED control functions.
• Independent double fan design to ensures better performance in different conditions. The large outdoor axial fan draws air to exchange heat, leading to highly efficient, powerful performance with low noise levels.
• Spiral retractable duct allows easy installation without cutting. Insulation eradicates condensation while optimizing power and performance.
• Super strong and lightweight UV stabilized polypropylene chassis and canopy able to withstand the toughest conditions. Patented integrated outdoor fan grille is simple, aesthetically pleasing and safe.
Excellent reverse cycle performance allows the HB3400 to operate in temperatures as low as -5°C and up to
+50°C. Features intelligent defrosting technology.
SPECIFICATIONS
HB3400A
Power supply 1 PH/230~240V/50Hz
Cooling capacity 3400W
Power input cooling 1350W
Current cooling 5.8A
Heating capacity 3000W
Power input heating 1250W
Current heating 5.4A
Maximum input power 1700W
Maximum current 7.4A
Weight of outdoor unit 43kg
Weight of plenum 3kg
Installation opening (mm) 360 x 360 / 400 x 400 - Optional adapter required for 400 x 400
Outdoor unit dimension (mm) 1122L x 850W x 223H
Plenum dimension (mm) 575Lx 556Wx 49H
WIFI YES
LED plenum YES
Warranty 2 Years from purchase
Installation
Installation is recommended to be installed by a professional. If assistance is required, please feel free to contact us so we can recommend and direct you to our friendly service agent.
