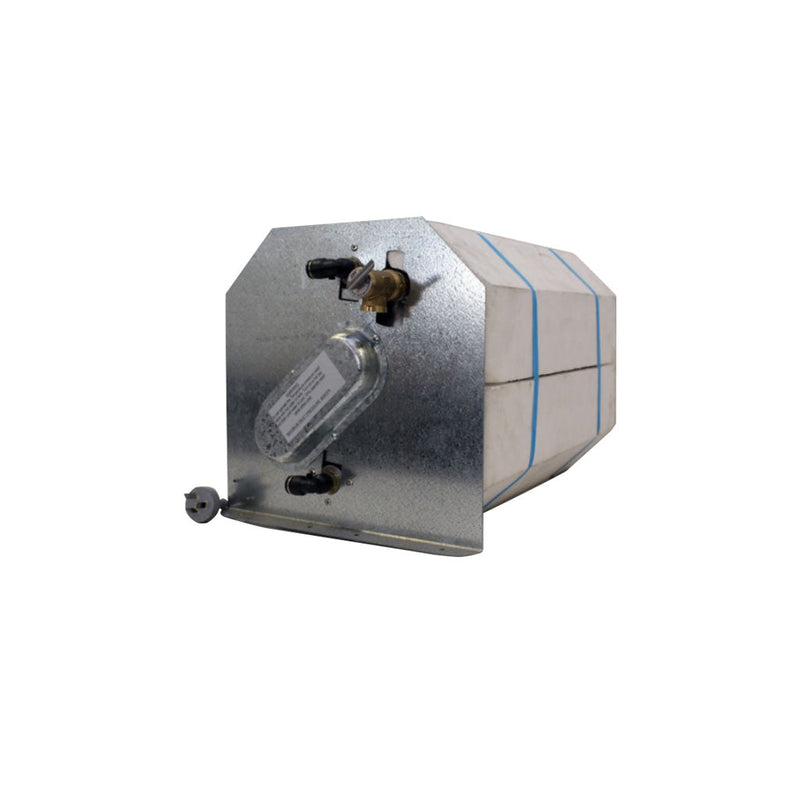

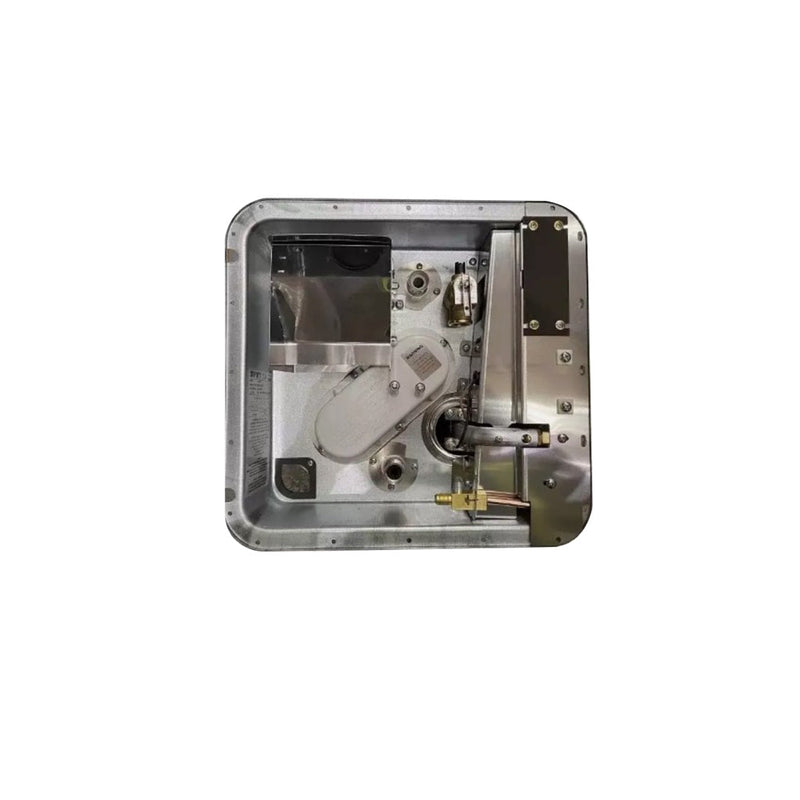

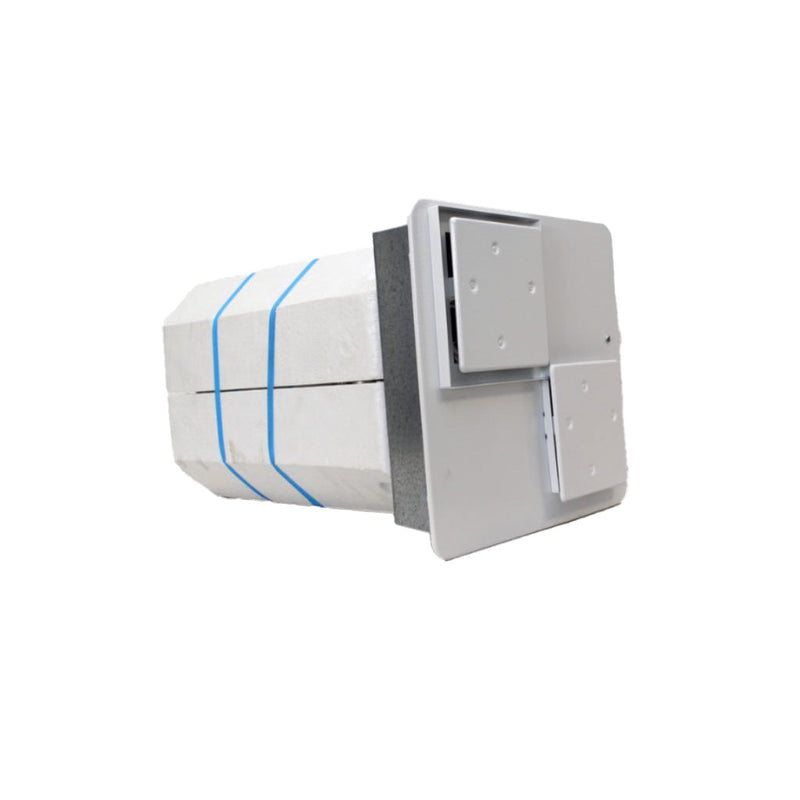

Swift 28L HWS Gas / Electric Hot Water System White Facia

BUILT TO TRAVEL MADE TO LAST!

Swift hot water systems deliver hot water into you RV with ease using gas or 240V.
28 Litre  Gas/Elec (Dual) Hot water Capacity
High Temperature Delivery
Dual fuel, Gas and/or Electric Operation
No Out Door Switches
All Connections from outside
Patent and design registration
High Capacity Delivery
Facia available in white or Black
Stainless Steel tank
Tubular Anode
Voltage Gas 12volt DC, Electric 1000watt 4.2Amp
Australian Made

Dimensions:

Unit 545mm(L) x 385mm(W) x 363mm(H)
Cut out 340-345mm(L) x 325-330mm(W) x 325-330(H)
12 Month Warranty covered by Swift appliances.

Technical Specifications:

Capacity 28 litres
Dimensions O/all length 545mm, width 375mm, height 363mm
Voltage for electric element 240V AC 50Hz
Voltage for gas burner 12V DC
Weight 5.0 kg (Dry)
Heating element: 1kw
Pressure Relief Valve. 500kPa
Maximum inlet water pressure 400kPa
Cut out Dimensions. 330- 340mm wide, 320 – 325 mm high, Minimum depth clearance required is 550mm
Gas connection location. 5/16 Tube Nut (1/2 UNF – 20TPI) 200mm from left hand side 20mm up
Water connection location. Hot 260mm up and 80mm from left, Cold 50mm up and 130mm from left
Pipe Access. Lower left corner along side of tank.
Note-Water fittings Not Supplied
