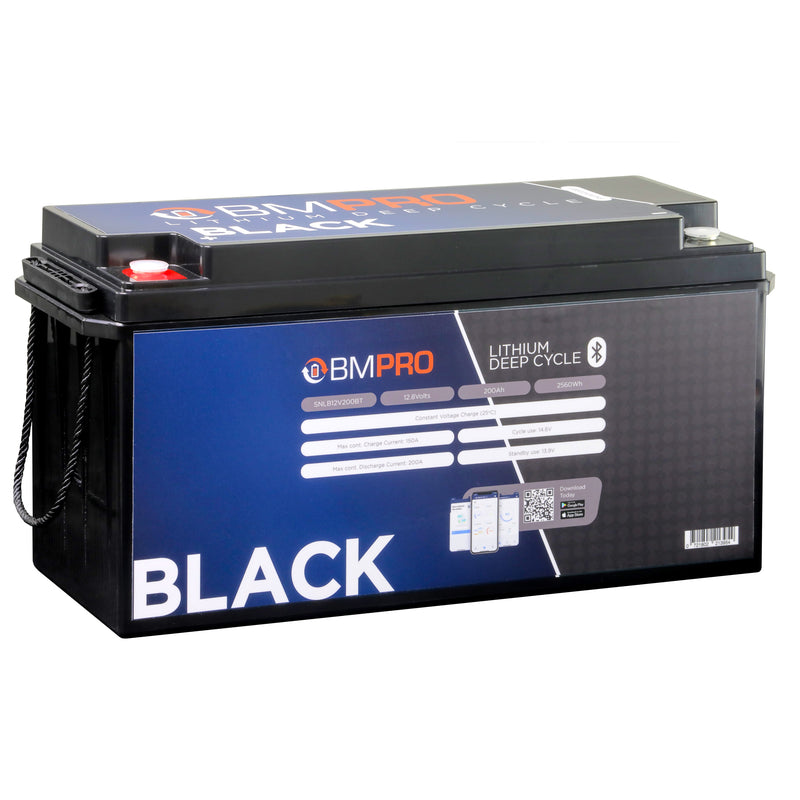

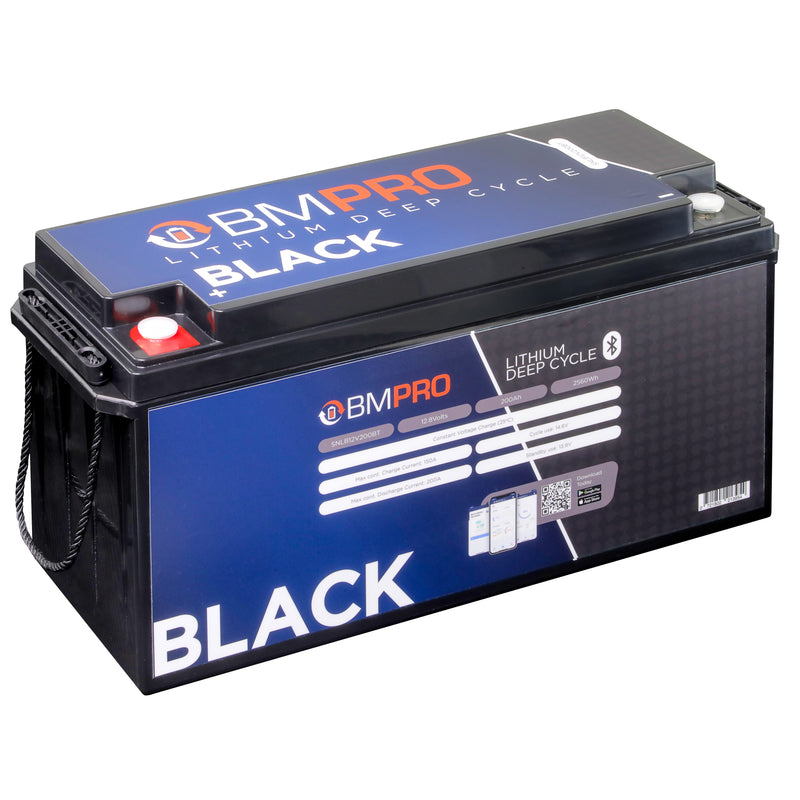

The BMPRO Lithium Black Series Battery by INVICTA is a 12V range specifically designed for replacement of similar size Lead acid batteries. The family is comprised of the popular sizes found in the lead acid range but with the added benefits of Lithium Iron Phosphate (LiFePO4) technology and is ideally suited to deep cycle longer run time applications.
Features and Benefits
• Large number of cycles >3000 (100% DoD) Up to 8 times cycle life of SLA lowering your total cost of ownership
• Safe and stable chemistry & Integrated BMS The use of LiFePO4 along with the integrated BMS ensures protection against over charge / discharge, temperature and short circuit providing the highest degree of safety
• Greater capacity utilisation – 60% more than SLA Gives longer runtime than equivalent SLA
• High energy density (less than half of the weight of SLA) Lowering total weight of application
• Fast recharge Battery is charged and ready to be used sooner
• Flat Discharge Curve Longer run time & more efficient use of capacity
• Extremely low self-discharge rate Can sit unused for longer periods of time
• IEC 62619 (Cell)
Specification:
Nominal Voltage 12.8v
Nominal Capacity (250C, 0.33C) 200Ah
Terminal M8
Length (mm) 485 ± 2mm
Width (mm) 172 ± 2mm
Height (mm) 240 ± 2mm
Weight 21.5kg
Max Charge Voltage 14.6 ± 0.1V
Standby 13.8 ± 0.1V
Cut off Voltage 11V
Max. Discharge Current 200A
Max. Pulse Discharge Current (3 Sec) 650A
Max. Charge Current 150A
Recommended Current Charge < 100A
Cycle Life (100% DoD) > 3000
Operating Temp - Charge 0 - 500C
Operating Temp - Discharge -20 - 550C
Short Circuit Release Load Release
Max. Series / Parallel Configuration 4S/4P
Dust & Water Resistance (IP) IP65
Bluetooth Connectivity Yes
IEC Certification 62619
