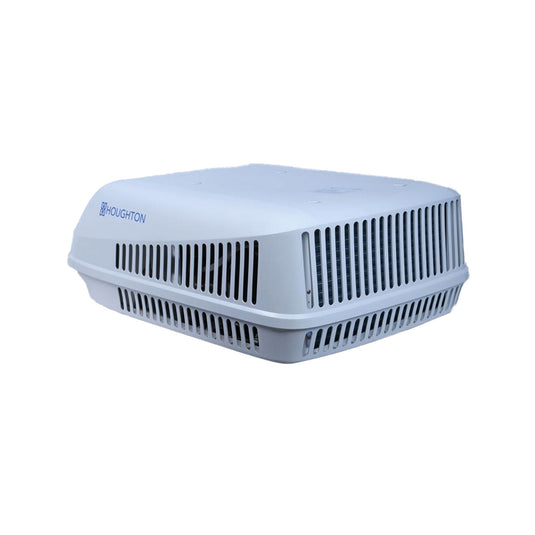

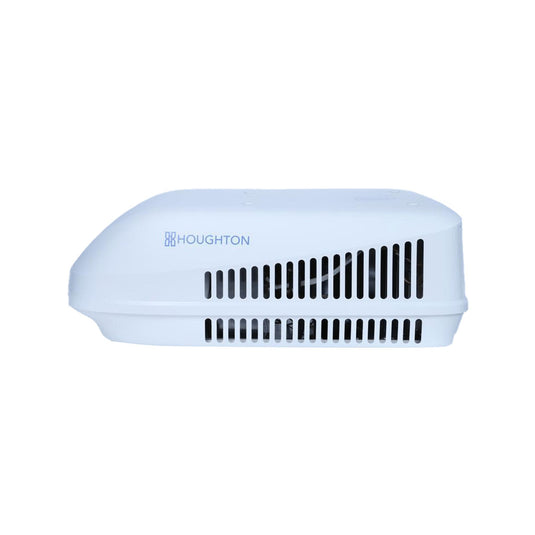

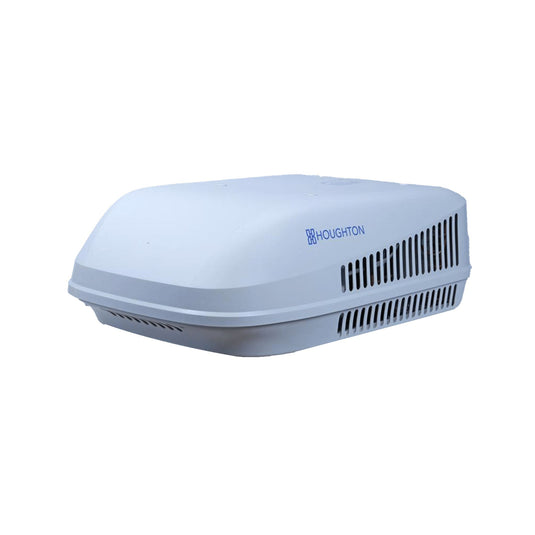

Houghton Belaire HB3500 Air Conditioner Reverse Cycle Air Conditioner

Powerful performance for larger motorhomes and caravans. Features an low plenum that suits free discharge or ducted air distribution systems. Colors can be customized to better complement exterior paintwork.

FEATURES

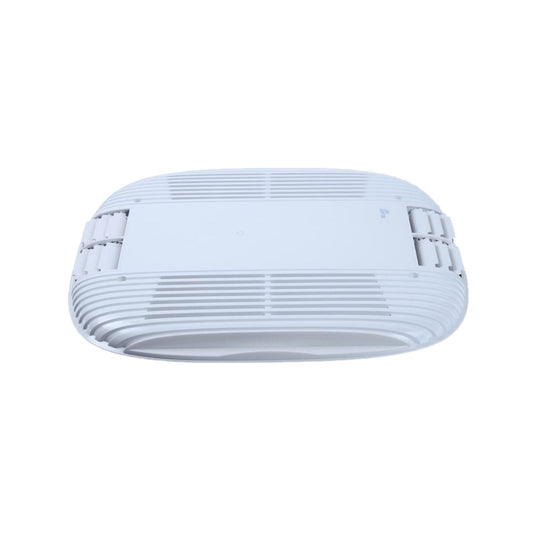

• Low plenum with on elegant design thot complements modern interiors. Features easy to read LED display showing temperature and mode.
• Attractive streamlined canopy design to perfectly integrate with modern caravan and motorhome design carriage return.

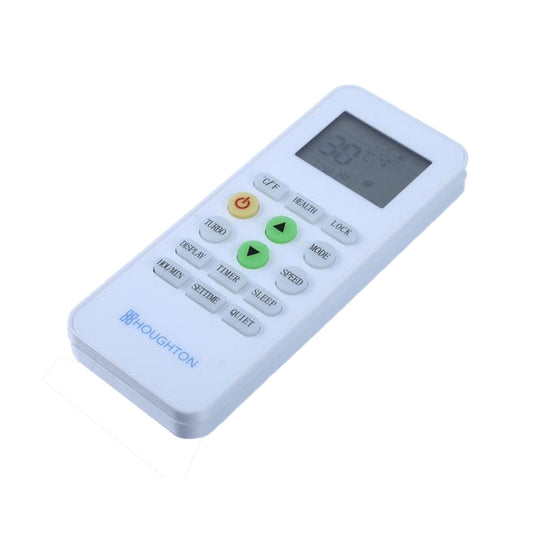

• Remote control with cooling, heating, dehumidifying, dry, sleep and timing functions.
• Three speed, ultra-quiet, high efficiency indoor fan. The large outdoor axial fan draws air to exchange heat, leading to highly efficient, powerful performance.
• Patented technology provides thermal protection to the evaporator.
• Spiral retractable duct allows easy installation without cutting. Insulation eradicates condensation while optimizing power and performance.
• Excellent reverse cycle performance allows the HB3500 to operate in temperatures as low as -5°C and up to +50°C. Features intelligent defrosting technology.

SPECIFICATIONS

Power supply 1 PH/230~240V/50Hz

Cooling capacity 3500W

Power input cooling 1300W

Current cooling 5.6A

Heating capacity 3500W

Power input heating 1200W

Current heating 5.2A

Maximum input power 1500W

Maximum current 6.5A

Weight of outdoor unit 35.5 kg

Weight of plenum 2.8 kg

Installation opening (mm) 360x360 / 400x400 Optional adapter required

Outdoor unit dimension (mm) 998L x 680W x 340H

Plenum dimension (mm) 575L x 536W x 43H

Installation

Installation is recommended to be installed by a professional. If assistance is required, please feel free to contact us so we can recommend and direct you to our friendly service agent.
