BMPRO Smart Connect Kit - 2 x Gas / 2 x Temp / 4 x Tire Press Monitoring Sensors

KEY FEATURES
Monitor up to 40 Bluetooth sensors
Connect up to 4 water tanks
Know your battery voltage
DIY installation in minutes

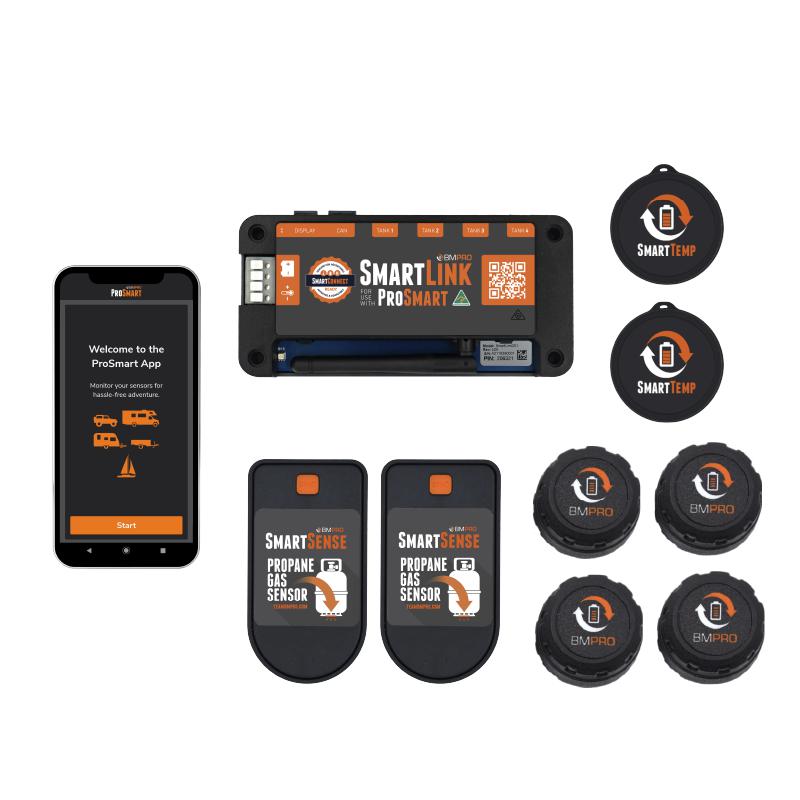

Package includes:

2 x Temperature sensors SmartTemp
2 x Gas bottle level monitors SmartSense
4 x TPMS SmartPressure
SmartLink
Battery cable
Temperature cable

ProSmart Premium – For Serious Adventurers
ProSmart Premium is a Bluetooth monitoring system to easily track multiple sensors and parameters on your adventure, giving you a wealth of information for comfort and safe travels.

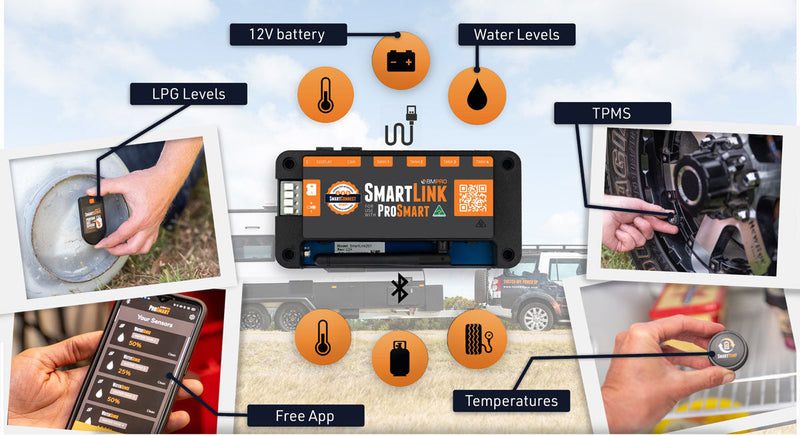

Monitor water levels in your fresh or grey water tanks, gas levels in your BBQ / propane bottles, tyre pressure (TPMS), temperatures in the fridge, freezer or inside your vehicle, as well as your 12V battery charge, all from an easy-to-use app on your smartphone.

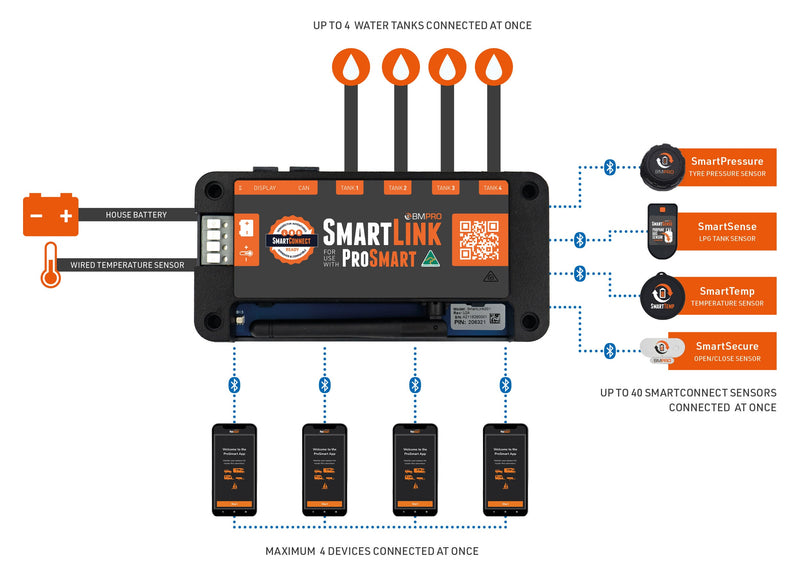

ProSmart Premium includes a SmartLink, a powered node that you can easily install and pair to your phone. It allows you to monitor both your wired and Bluetooth  sensors – so you can enjoy off-grid travels independent from the presence of an internet connection.

Installation of the Bluetooth Monitoring System ProSmart Premium
To install the ProSmart Premium system, place the SmartLink close to the power source (12V battery), mount it on the wall with 4 screws, connect to the battery with the supplied cables, connect the wired temperature sensor if desired, download the free ProSmart app and pair it with the SmartLink. Pair the sensors via your phone – and you are ready to go!

For water tank monitoring we recommend installing digital water level indicators such as  Dippers.

Currently, the following Bluetooth sensors are available:

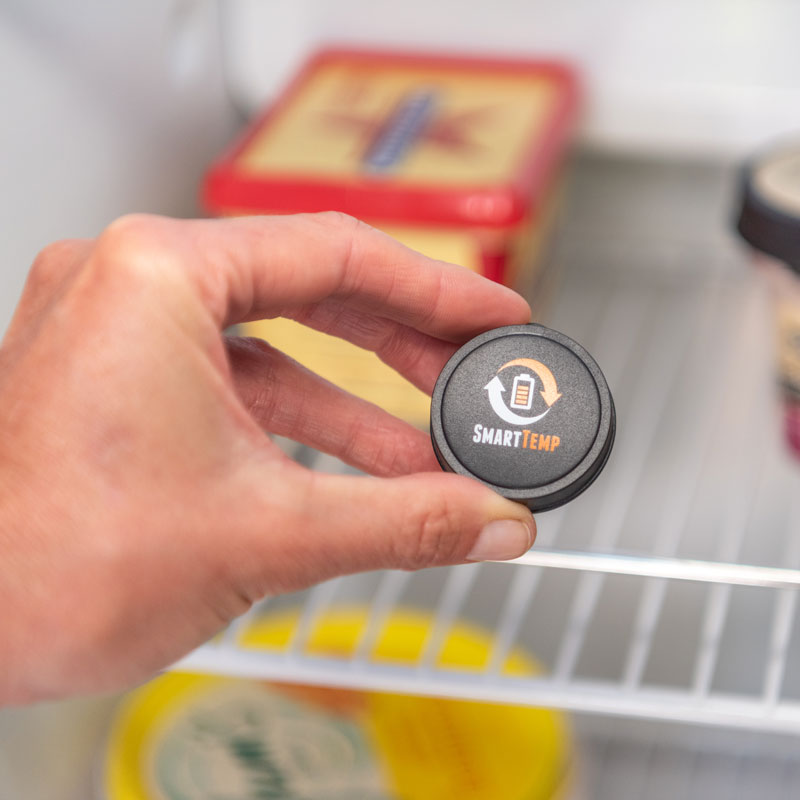

SmartTemp – measures temperature in a range of locations throughout van

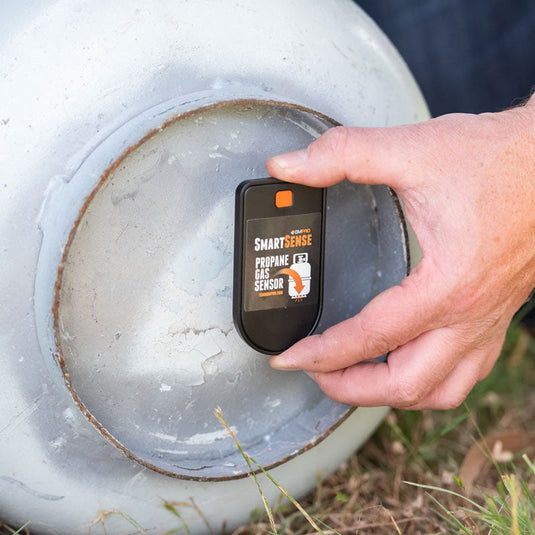

SmartSense – provides accurate reading of remaining LPG Propane Gas level in bottle

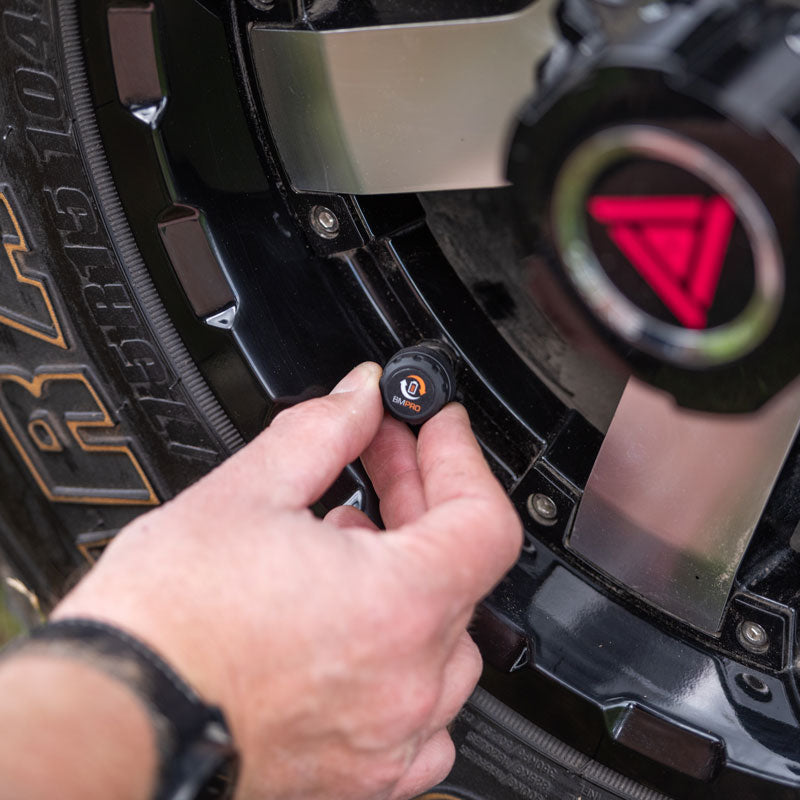

SmartPressure – maintains accurate recordings of tyre pressure and internal temperature
Compatibility
iOS 13 or later
Android 8 or later

Specifications

SmartLink

Input Voltage Range

8V – 16V
Battery Drain

<20mA
Ambient Temperature

-20°C to 60°C (-4°F to 140°F)
Dimensions

156mm x 76mm x 23mm

Wired Temperature Sensor

Measurement Range

-20°C to 60°C (-4°F to 140°F)

SmartPressure Sensor

Maximum Operating Pressure

99 PSI (680k kPA)
Frequency Range

2402-2480MHz
RF Output Power

-34.36dBm (EIRP)

SmartSense Sensor

Measurement Range

1°C to 32°C (33°F to 90°F)
Frequency Range

2402-2480 MHz
RF Output Power

0.9 mW

SmartTemp Sensor

Operational Temperature

-20°C to 55°C (-4°F to 131°F)
Frequency Range

2402-2480MHz
RF Output Power

1 mW

FAQ

How many Bluetooth SmartConnect sensors can I have paired to the SmartLink?

Up to 40 SmartConnect sensors can be paired via Bluetooth to the SmartLink at once.

How many mobile devices can I pair to the SmartLink?

Up to four mobile devices can be paired to the SmartLink at once.

What is the Bluetooth range of the ProSmart system?

The Bluetooth within the ProSmart system has been tested and proven to work up to 20 metres in a direct line of sight.

This distance will vary depending upon circumstances and interference such as:

• The wall of a caravan.

• The transmission between the caravan and the tow vehicle.

• Construction methods.

• Placement of the product.

• The Bluetooth receiver of your device (including phones, tablets, smartwatches, etc).

• The environment.
