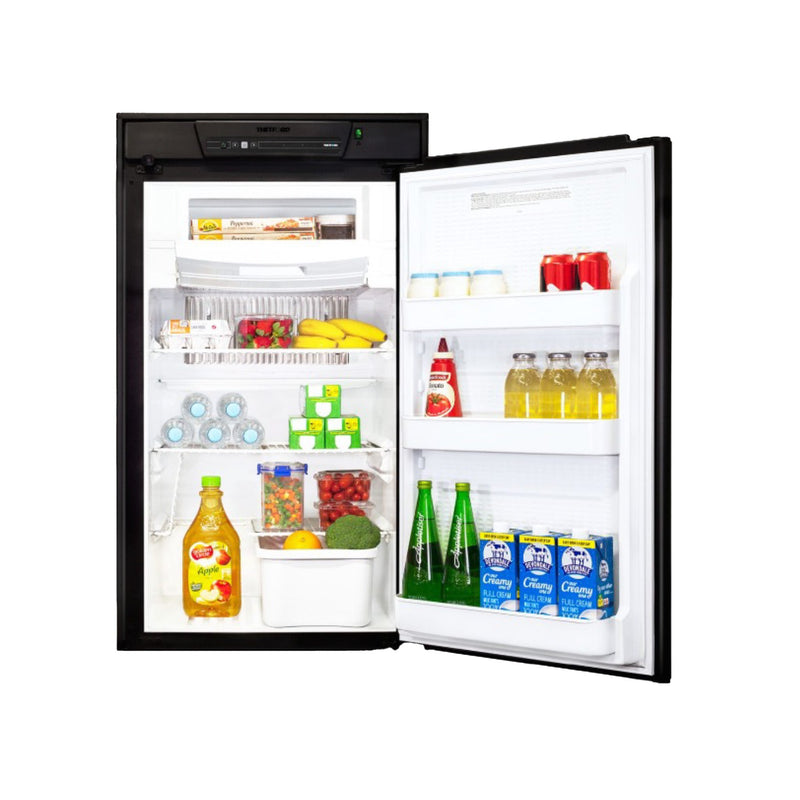

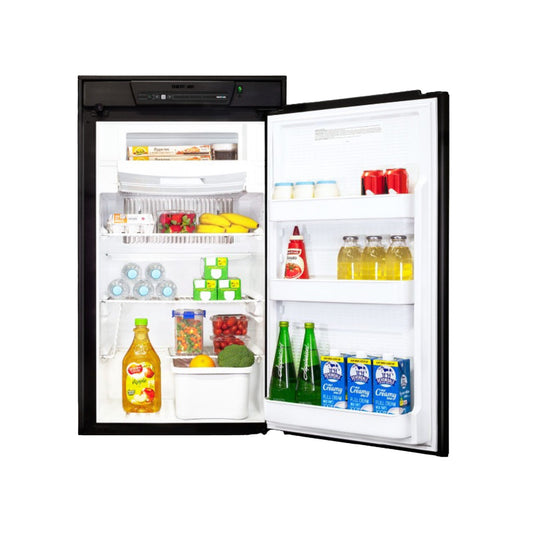

Thetford N514E 169 Litre 3 Way Absorption Refrigerator

• Made in the USA
• Three-Way Operation: The refrigerator operates on three types of power sources and selects the most appropriate source.
• 12V DC (Direct Current): Ideal for use with a vehicle battery or other 12V DC power source.
• 240V AC (Alternating Current): Can be plugged into a standard household power outlet.
• LPG (Liquefied Petroleum Gas): Uses gas, making it perfect for off-grid or mobile situations where electric power may not be readily available.
• Electric Display: Easy-to-read interface.
• Automatic Energy Selection (AES): Automatically selects the best energy source.
• AGA Approved: Complies with the latest Australian Gas Association standards.
• Adjustable Thermostat: Responds to high ambient temperatures and varied use.
• Flame Current Meter: Monitors gas ignition for safety.
• Easy-to-Clean Shelves: Durable white powder-coated finish.
• Includes Ice Tray: Convenient for storing ice.
• Contemporary Design: Features ergonomic controls and latches.
• LCD Display

Specifications

• Capacity: 169L (including 21L freezer).
• 12V Consumption: 3.5kWh/24hrs.
• Gas Consumption: 17.5g/hr.
• Weight: 40kg.
• Dimensions (mm): 640D x 625W x 1090H (includes door).
• Cut-Out Dimensions (mm): 610D x 602W x 1083H.
• Panel Size (mm): 939H x 541W x 4.7D.
• Fan: 1 included.
• Electronic Ignition: For easy starting.
• Automatic Energy Selection: Efficiently selects the best power source.
• Certified to Australian Standards
• Colour: Black.
• Right Door Hinge (Reversable.)
• 3-Year Standard Warranty

Important Notes

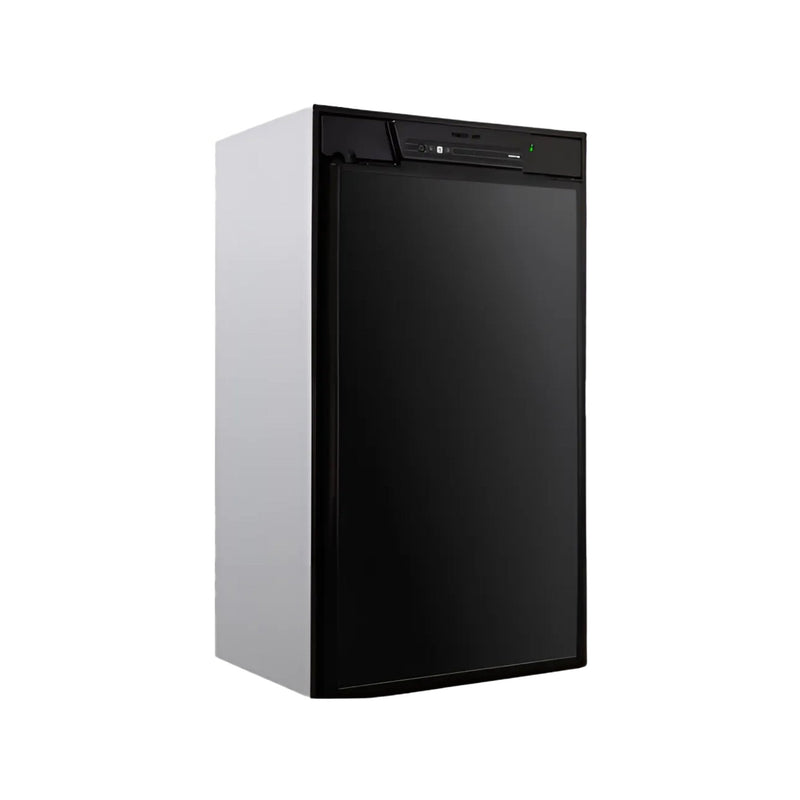

· The Thetford N514E has no exterior door skin, the fridge is designed to allow you to place a panel on top to match your kitchen décor. The image of the fridge is just an example of a black panel fitted which is not supplied, you will actually get a silver-colored coated foam door.

· Thetford Absorption refrigerators will require vents on the outside of the RV. If your RV does not have any vents, you will be required to purchase separately 2 vents 1 for a top 1 for a bottom. The vents are available in 2 different colours that being black or white to suit your colour coordination of your RV.

63124627 – Bottom Black Vent

631246111 – Bottom White Vent

63124727 – Top Black Vent

631247111 – Top White Vent

· Thetford Absorption refrigerators will also require a Flue Kit, these are also available in black or white. The Flue Kit efficiently expels exhaust gases, while the T cap assembly facilitates smooth airflow. A convenient and reliable solution for improving airflow and maintaining the longevity of your fridge.

636974BK – Black Flue Kit

636974WH – White Flue Kit

Needs to be installed and certified by a qualified & licensed Gasfitter. Incorrect install will void warranty.  Ensure you also refer to the Manufacturer Installation Guide / Product Manual for recommended ventilation set-up for optimal fridge performance.

We can ship this to anywhere in Australia. If you require a cost on freight to your doorstep, please send us a message so we can quote this up.
